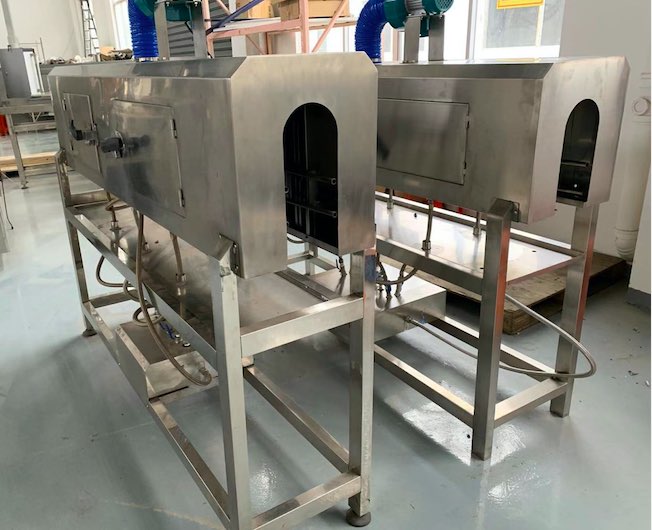

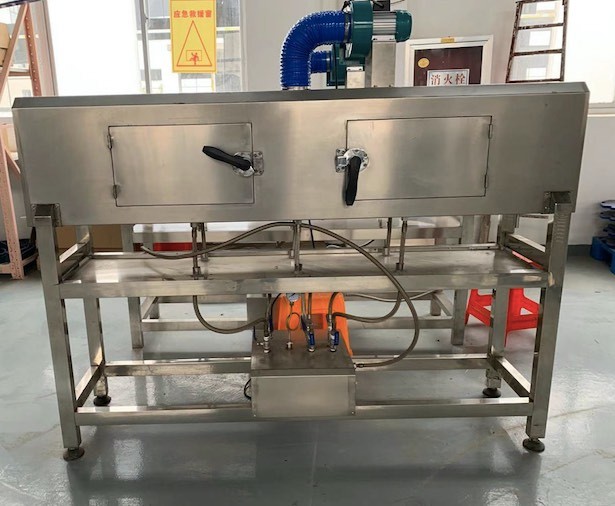

Sleeving Line with Steam Shrink Tunnel


Model ZQ-2000
Blower Input Power 1Phrase 220V 1.1KW
Working Pressure 0.1Mpa
Steam Consumption 10-20kg/hour
Machine Size L2300*W400*H450mm
Machine Weight 500KG


1. Steam shrinking tunnel furnace has greatly improved heat shrinkage efficiency and is suitable for various plastics and glass bottles. For different bottle types and irregular round bottles, square bottles, flat bottles, etc., the furnace is easy to adjust and maintain. Shrinkage is flat.

2. The steam injection method adopts the design of steam distribution package, adjustable steam guiding system, the pipeline is smooth and does not occupy space, and the discharge outlet is divided into three sections on each side. The height of each section, front and rear and air volume can be adjusted separately to reach the maximum. Good shrinkage effect.

3. The low-pressure steam distribution bag is designed with seamless steel pipe, and each connecting pipe uses a stainless steel hose quick connector, which is convenient for disassembly and installation.

4. The whole machine casing is made of stainless steel SUS304, which saves energy and meets food safety standards.

5. The bottom stainless steel water tray is concentrated with condensed water, which can be taken out and the working environment is not affected.

Machine details:
