1. Full cover stainless steel 304 host: the whole machine is waterproof and does not rust
2. Adjustable cutter head unit : self-created rotary cutting, double-sided blade, long life
3. Single-positioning center guide column: label guide is more stable
4. Synchronous bottle divider: bottle conveying is more stable
5. Label brushing group: the precision of the sleeve label is more accurate
6. Label control electric eye frame: the combination of the self-created tail wing and the electric eye improves the cutting accuracy of the film material
7. Button-type control box: the operation is more user-friendly
8. Independent feeding rack: the position of the rack can be freely selected.

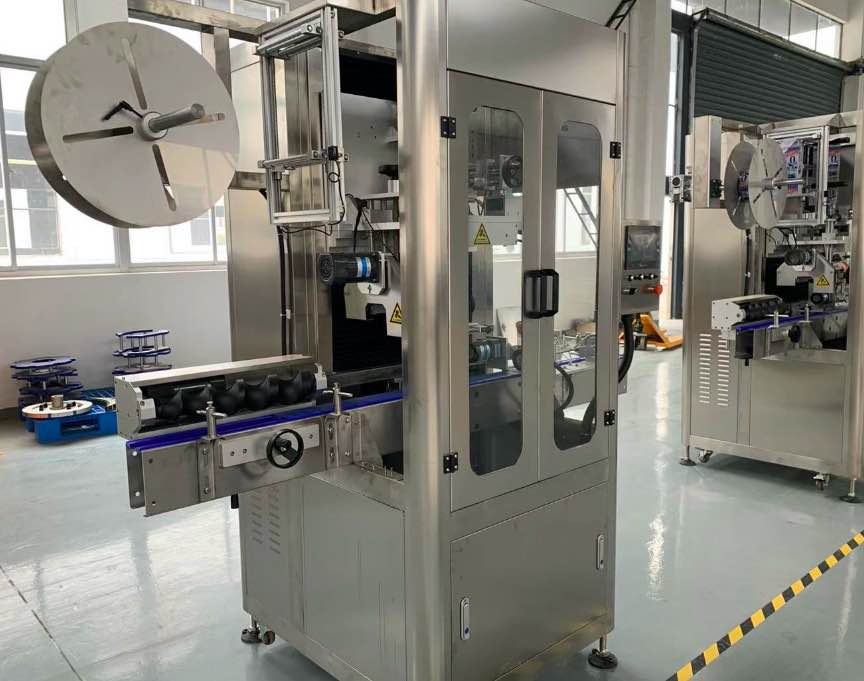

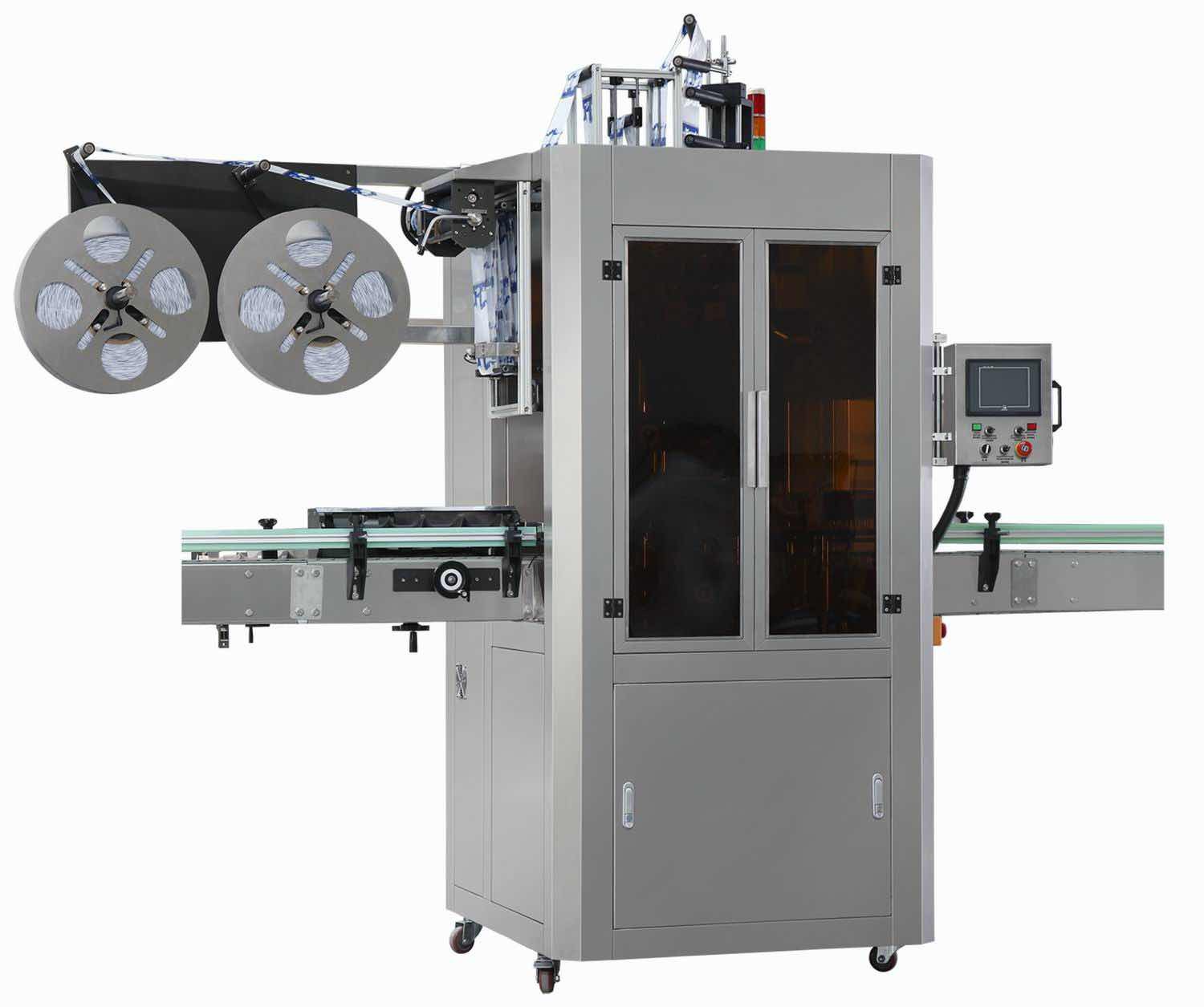

1.The sleeve labeling system is ideal for high-speed beverage, dairy and household product packaging lines.
2.It applies both full-sleeve shrink labels and tamper-evident sleeves at rates up to 450 bottles per minute.
3.It suitable for the bottle comes with PVC,PET and OPS material labels.
4.Whole machine with high quality SUS304 material ,waterproof.
5.All of our solutions are customized with the customer’s product and label size.
|Speed||450bottle per minute|
|Diameter of bottle||
|Height of bottle||30mm-280mm|
|Applicable label length||30mm-250mm|
|Applicable label thickness||0.027mm-0.13mm|
|Transparent label length||≥5mm|
|Inner diameter of paper tube||≥4"|
|Outside diameter of paper tube||≤500mm|
